East Microwave DEM70LNAK - 70 cm GaAs-FET Pre-Amplifier kit
Gain=17 db and Noise figure <.7 db
Gain=17 db and Noise figure <.7 db
(click
the small pictures to see a larger picture in a new browser window)
 |

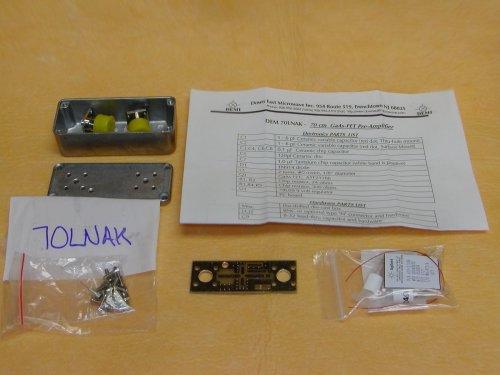

This is the preamp kit as it comes. |
 |

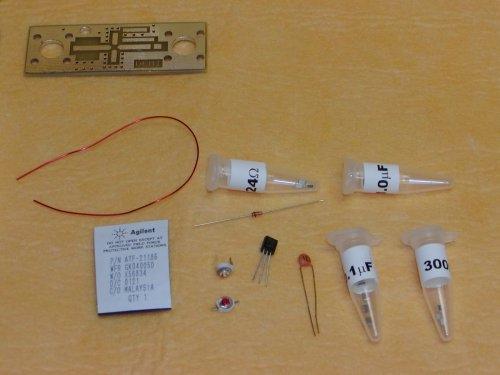

These are the small parts. The surface mount GaAs-FET is in the small square package on the lower left. The other SMDs are in the little plastic tubes with the pointed ends. |
 |

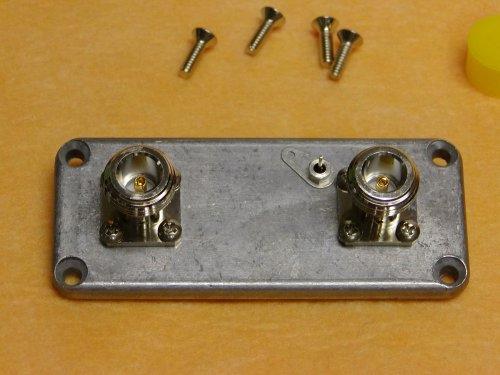

The box top with the connectors and feed-through capacitor mounted. |
 |

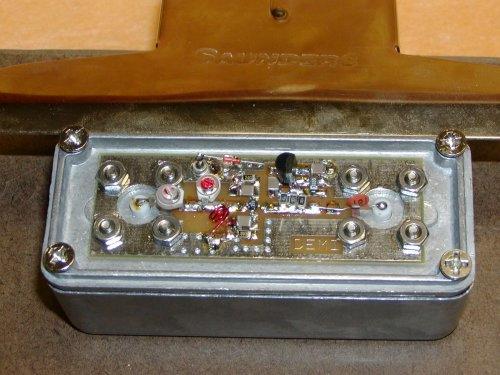

The circuit board is mounted on the underside of the top with the connectors and feed-through capacitor connections coming through holes in the board. All the other components are then soldered to the board. |
 |

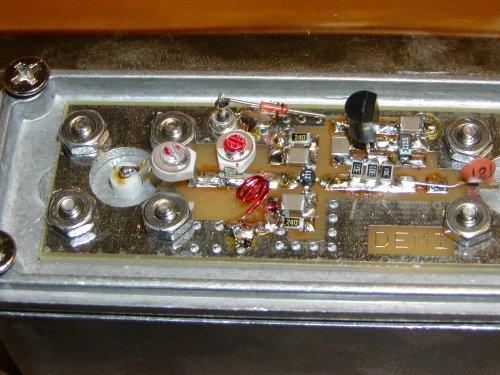

Closeup of the board components. |
|

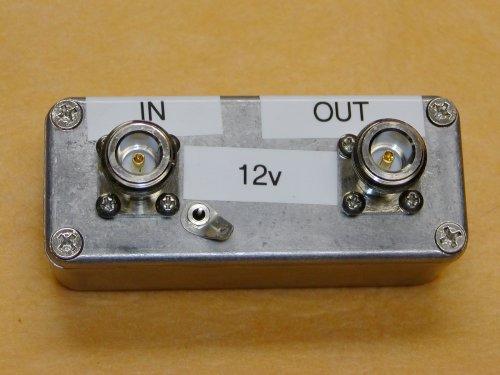

The completed pre-amp. |
