W4ZT
UHF Repeater
|
Union
City, Georgia
442.125
MHz (+5 MHz) tone required 100 Hz
Motorola
T1504A UHF Duplexer
(click
the small pictures to see a larger picture in a new browser window)
 |

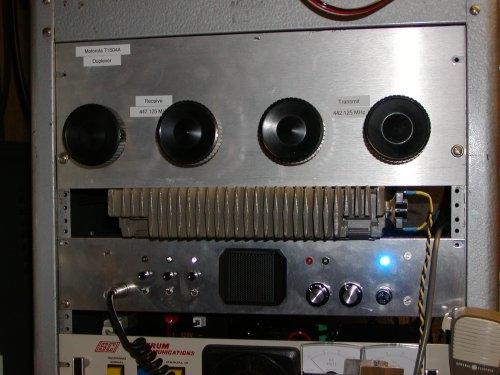

The UHF Duplexer with the preamp hanging off the right side in the picture. |
 |

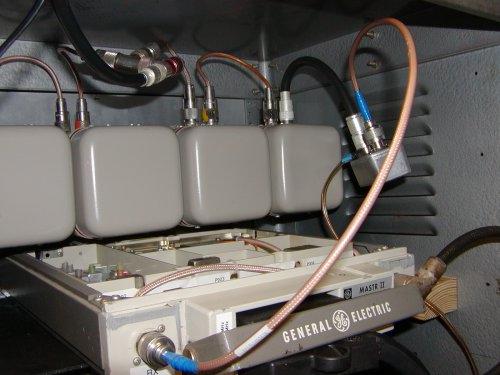

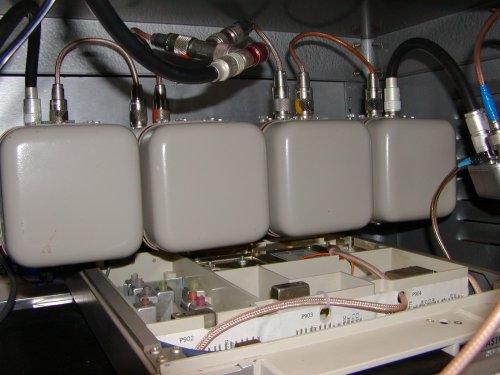

You can see the antenna cable and the cavity interconnect cables here. |
 |

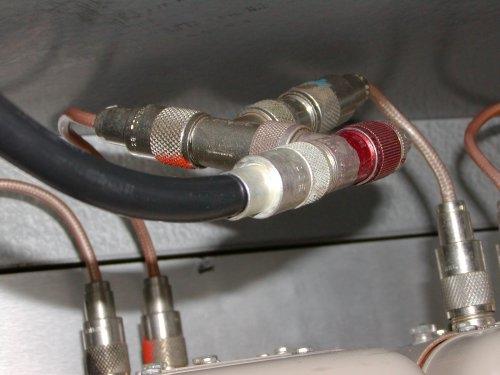

This is the antenna connection to the duplexer with the desense tee in place. |
