W4ZT UHF Repeater

Union City, Georgia
442.125 MHz (+5 MHz) tone required 100 Hz

UHF Repeater Controller
Contains an integrated control head for the GE MastrII UHF radio, a CAT-250 controller board and a prototype board with interface circuits. The repeater radio is now a continuous duty duplex shelf unit instead of the mobile shown below.


(click the small pictures to see a larger picture in a new browser window)
Click for Larger Picture It started with a diagram on paper.

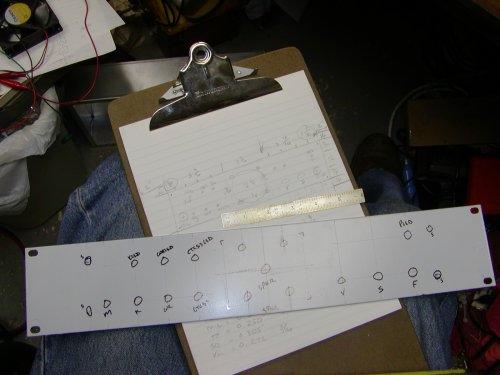

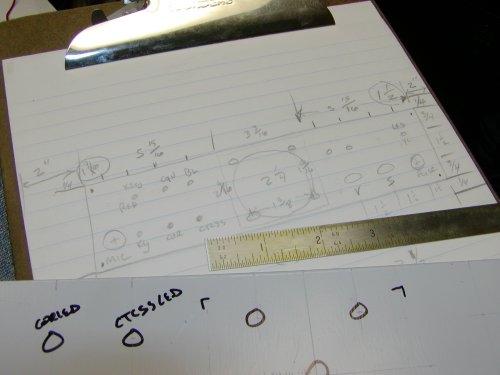

Click for Larger Picture The front panel layout about ready to drill.

Click for Larger Picture After drilling all the holes then mounting parts makes it look like something.

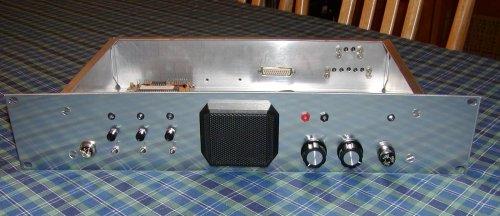

Click for Larger Picture Face of the controller before wiring.

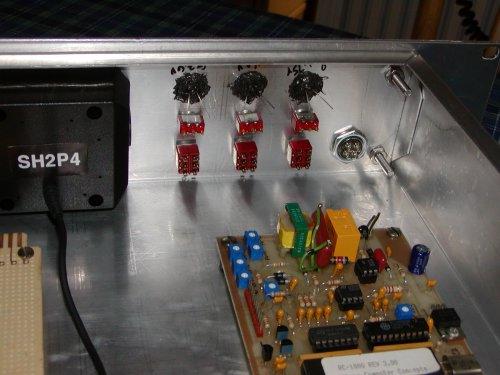

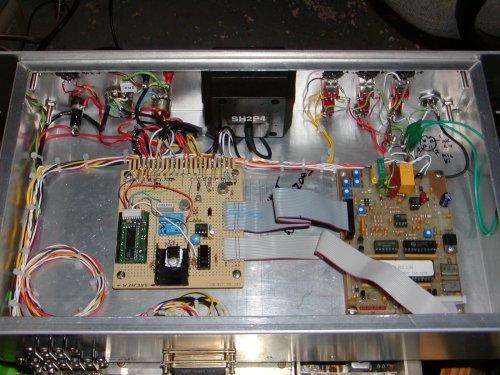

Click for Larger Picture Inside view. The RC-1000 controller board has been replaced by a CAT-250 controller board. A prototype board on your left for various interface needs. It has also been rebuilt.

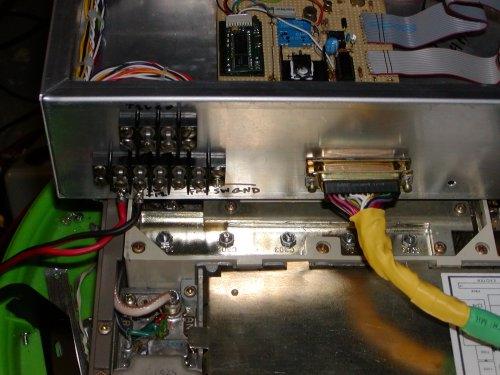

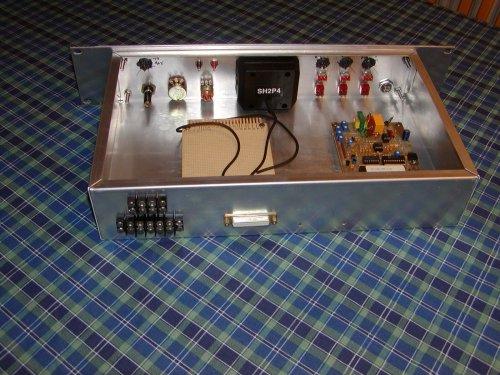

Click for Larger Picture Connectors on the back for 12 volts DC, telephone and the cable to the GE MastrII (on the DB25 connector).

Click for Larger Picture Switches, LEDs and a microphone connector on one side...

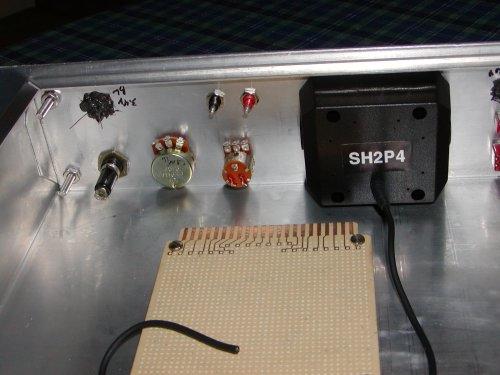

Click for Larger Picture Fuse, LED, squelch, volume and speaker test points on the other.

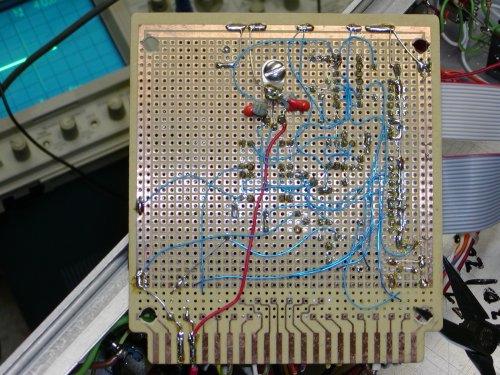

Click for Larger Picture Bottom of the interface board. All prototype. The 5 volt regulator is center top.

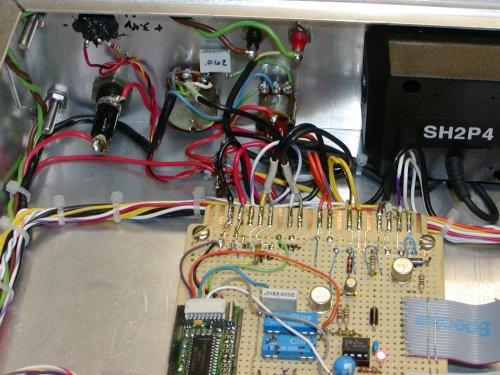

Click for Larger Picture Wiring of the fuse holder, squelch and volume controls and interface board.

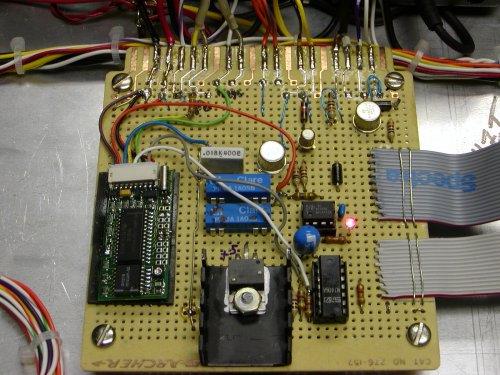

Click for Larger Picture Top side of the interface board. The TS-64 CTCSS encoder/decoder is on the left. The 5 volt regulator is bottom center. Above the regulator are two blue relays, one for fan control and one for PTT into this board. The new interface board makes proper connections to the CAT-250 controller. It still contains the TS-64 etc.

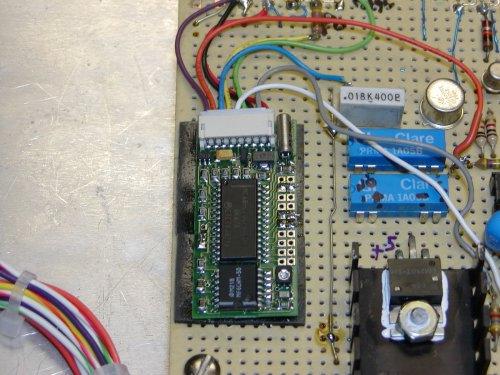

Click for Larger Picture Here is the TS-64.

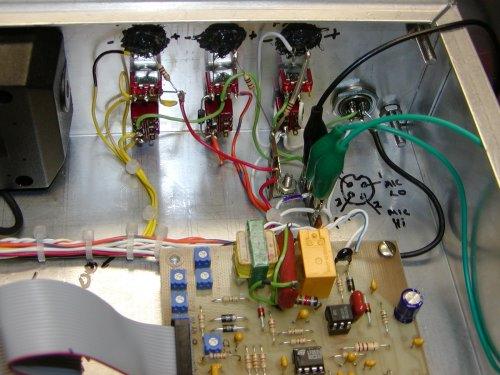

Click for Larger Picture Wiring of the control switches, LEDs and microphone connector.

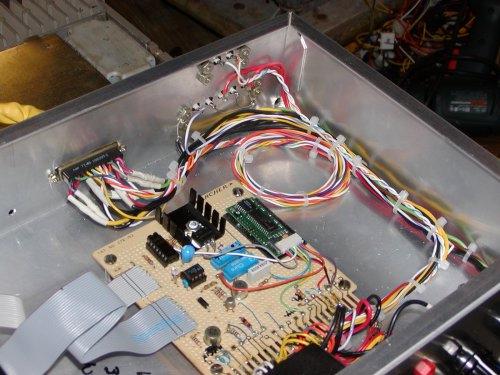

Click for Larger Picture The interface board and rear connectors.

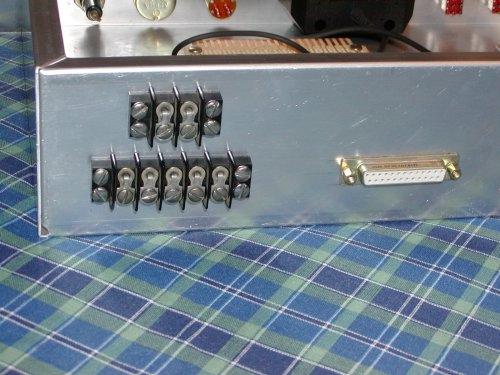

Click for Larger Picture The rear panel barrier strips and connector for the control cable.

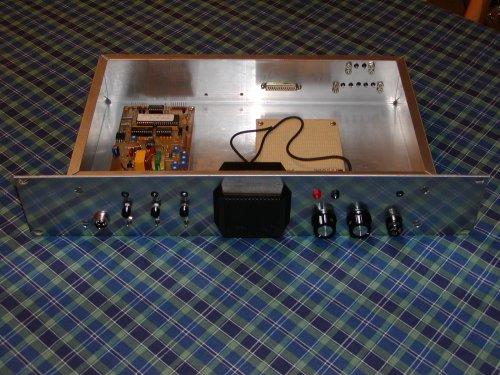

Click for Larger Picture Looking down into the chassis.

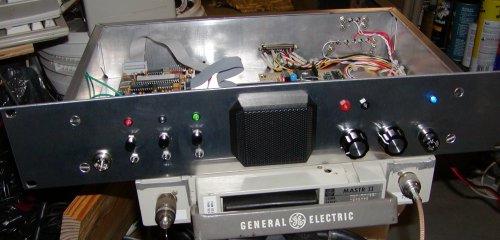

Click for Larger Picture Front panel with lights.
