1

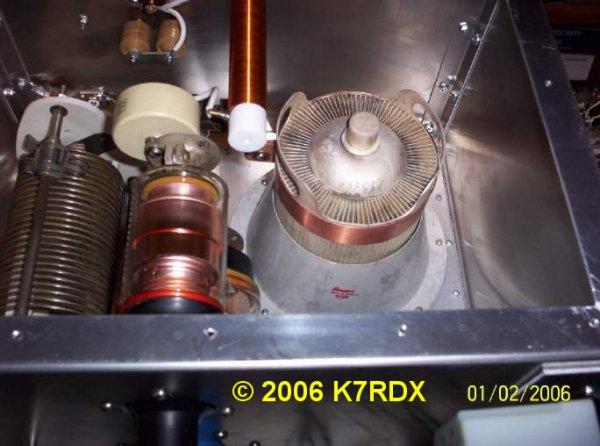

RF Deck

2

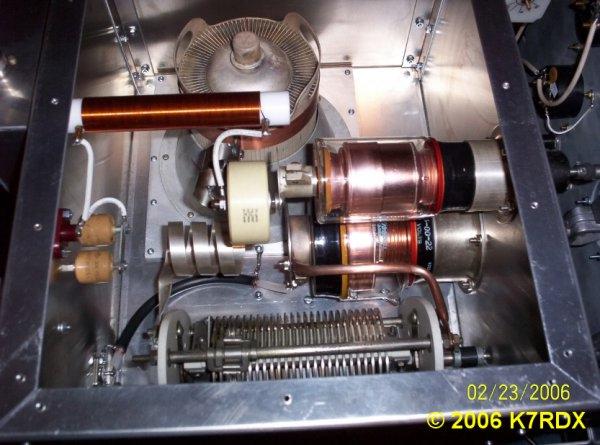

RF Deck

3

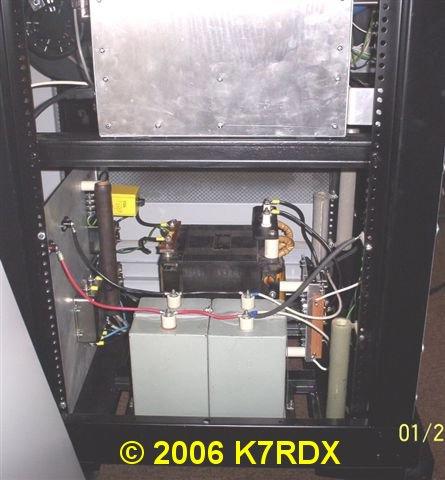

Old HV transformer
Filter caps are 16.5 uf/7.5 KV CDE Oil Caps.

4

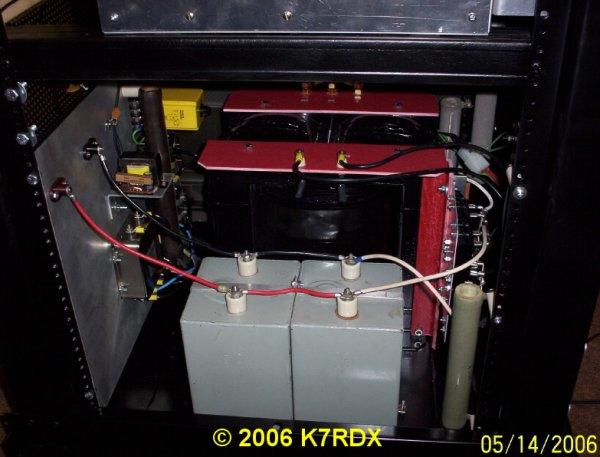

New HV transformer
Peter Dahl, 220/240 VAC primary, 4400 VAC, 3A CCS, weighs 165 lbs. Bleeder 300K/200 Watt

5

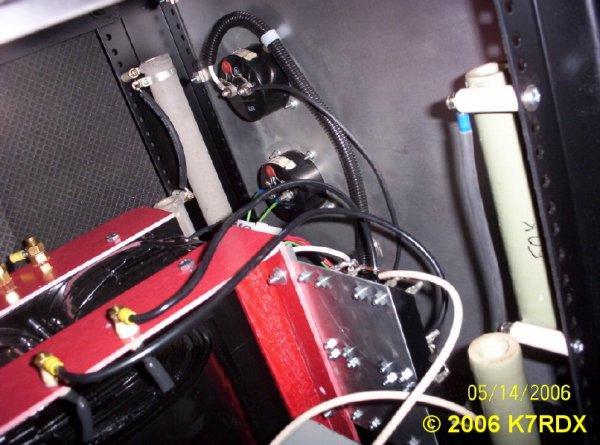

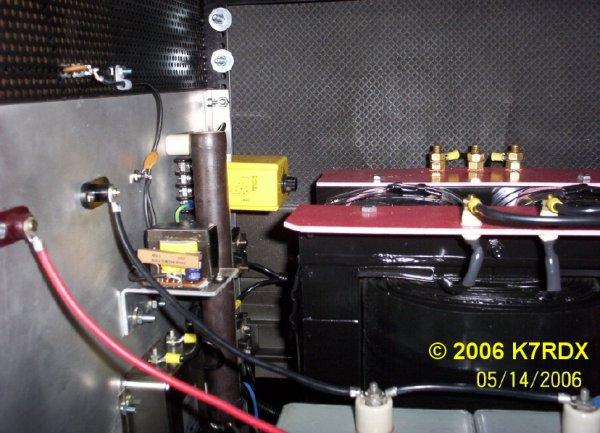

Connectors, 1.5 second step-start

6
FWB using 8 K2AW 10 KV blocks

7

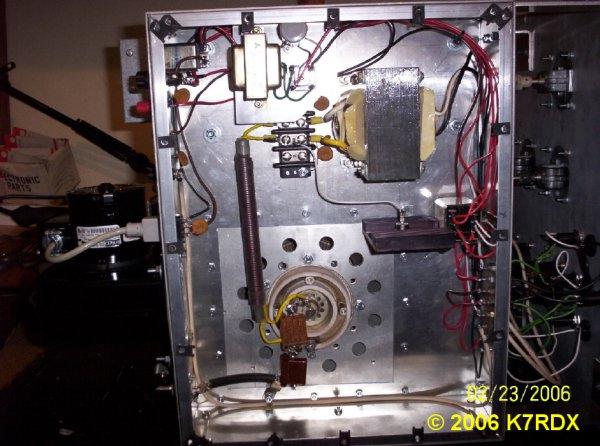

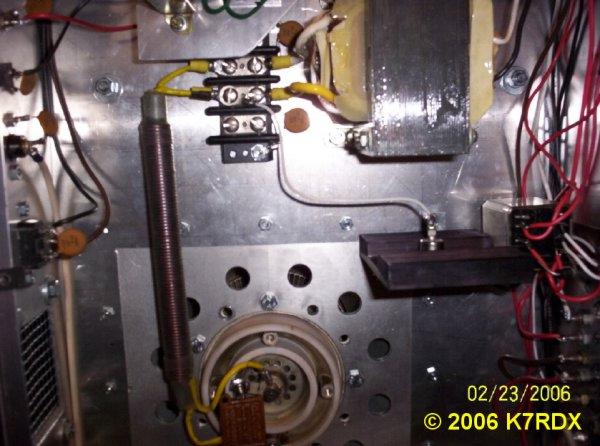

Underside of RF deck showing filament transformer, cathode choke, bias zener

8

9

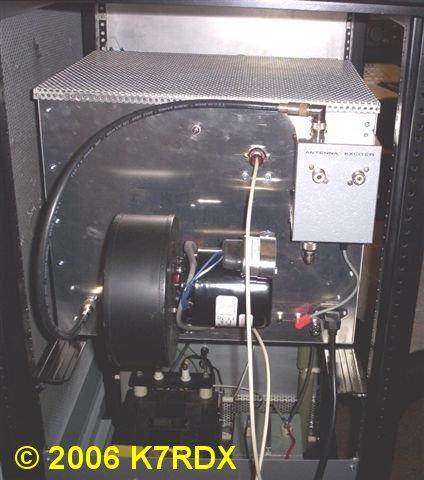

Rear of RF Deck before adding tuned input

10

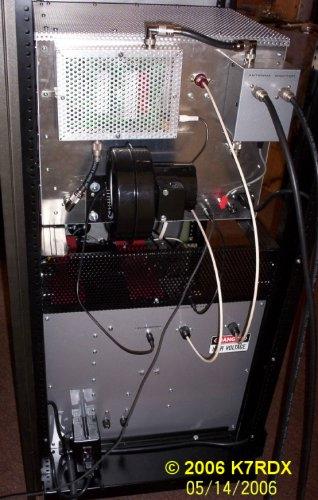

Rear of RF Deck after adding tuned input. Connections to power supply

11

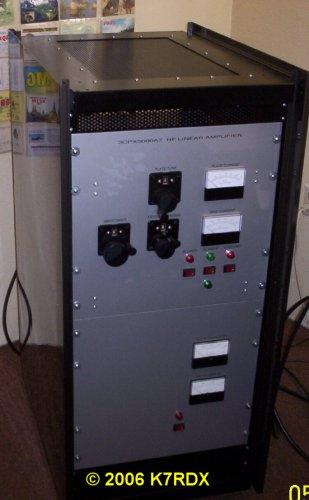

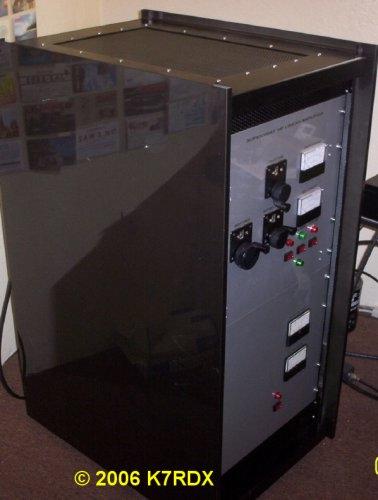

Front of rack

12
